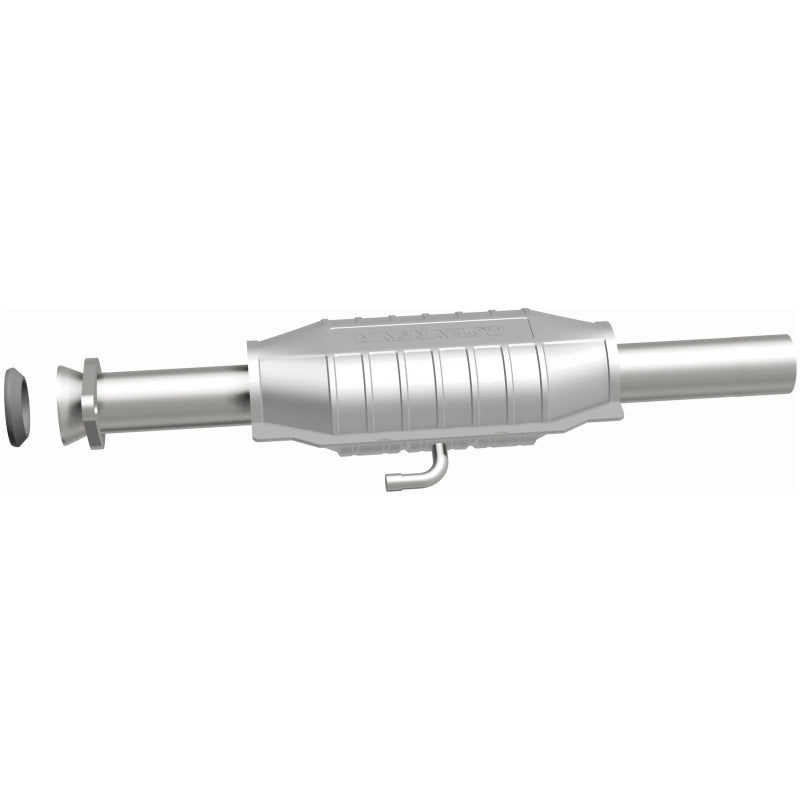

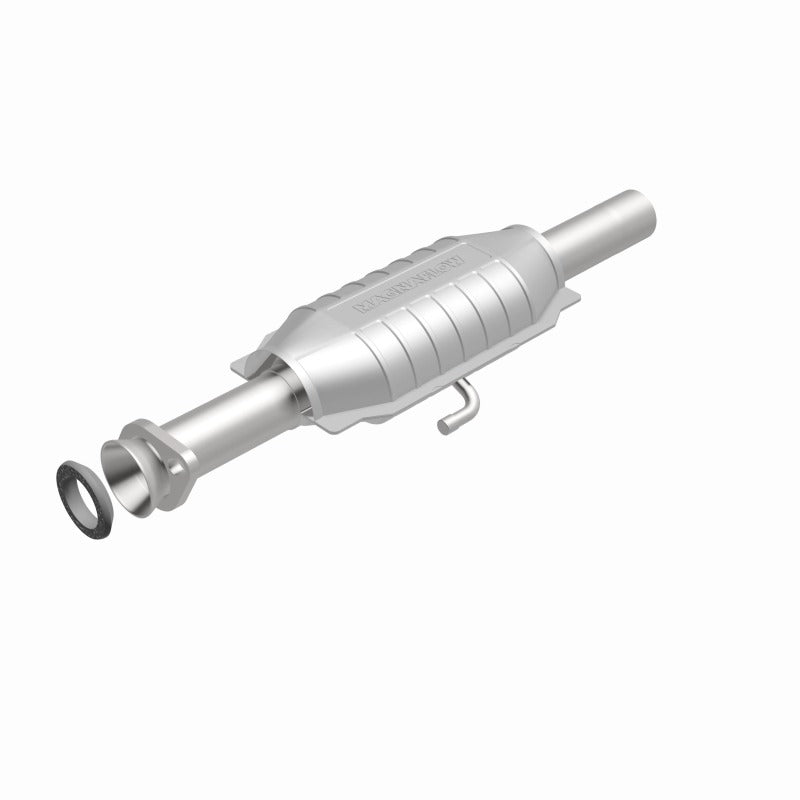

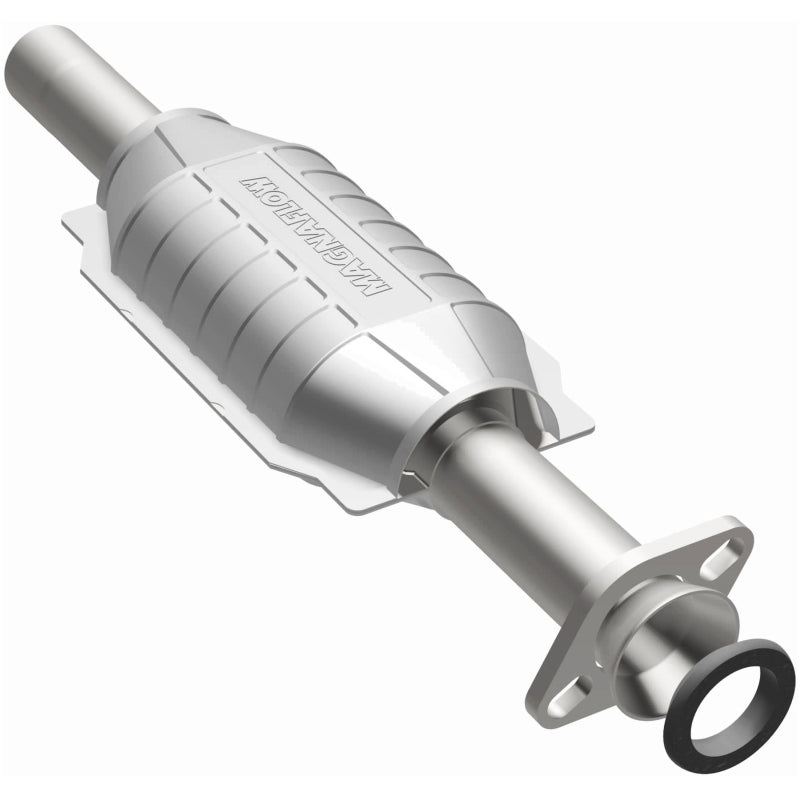

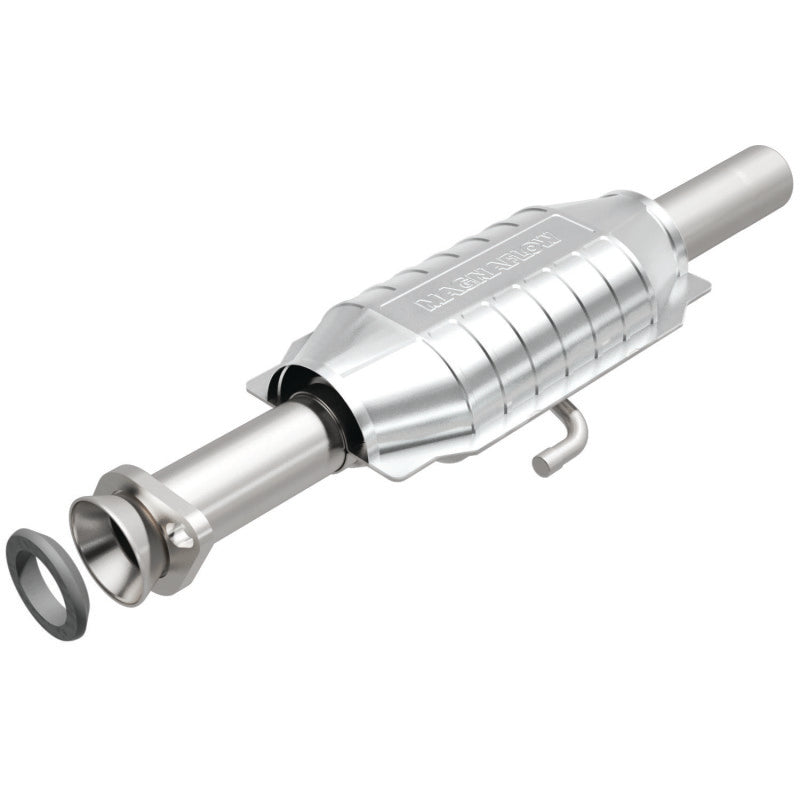

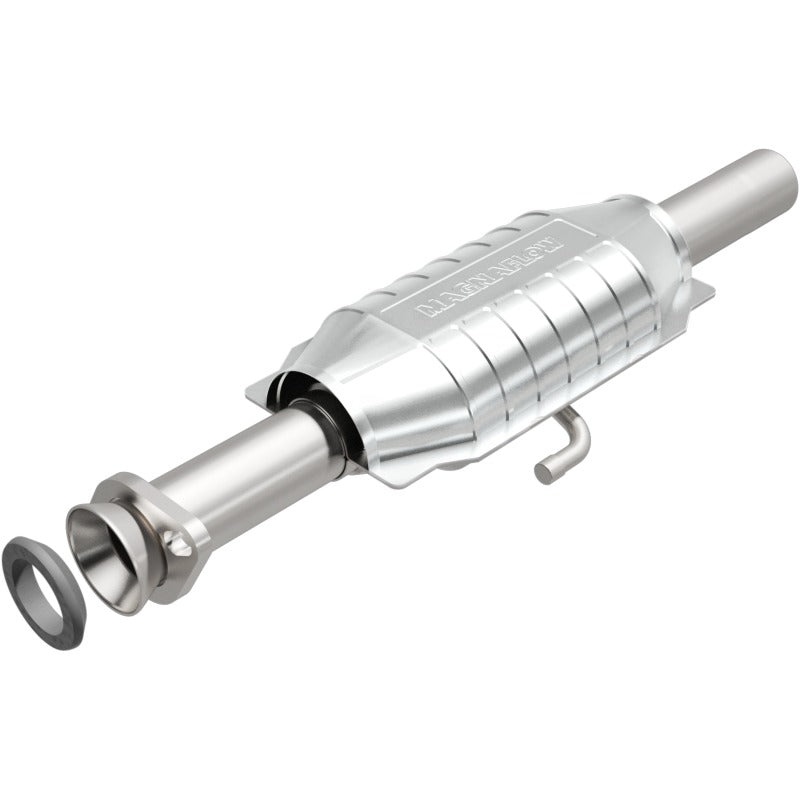

MagnaFlow Conv GM 24X6.5X4 2/2

Understanding Exhaust System Types

Cat-Back Exhaust Systems

A cat-back exhaust replaces everything from the catalytic converter back to the exhaust tips. This is the most popular type of exhaust upgrade because it provides significant performance and sound improvements while maintaining emissions compliance. Cat-back systems typically include mid-pipes, mufflers, and exhaust tips.

Axle-Back Exhaust Systems

Axle-back systems replace only the components behind the rear axle, typically just the mufflers and tips. These are more affordable and easier to install than cat-back systems but provide less performance gain. They're ideal if you primarily want to change the exhaust sound and appearance.

Full Exhaust Systems (Header-Back)

Full exhaust systems replace everything from the headers or manifolds all the way back. These provide maximum performance gains but are more expensive and complex to install. Some full systems may not be street legal in all areas due to emissions equipment removal.

Resonated vs. Non-Resonated Exhausts

Resonated Exhausts

Resonated exhaust systems include resonators - chambers designed to cancel out specific sound frequencies. These systems provide a more refined, moderate exhaust note with reduced drone at highway speeds. They're ideal for daily drivers who want improved sound without excessive noise during long drives.

Non-Resonated Exhausts

Non-resonated (or de-resonated) systems remove these sound-dampening chambers for maximum volume and aggression. These produce a louder, more raw exhaust note that enthusiasts love. However, they may have more drone at certain RPM ranges. Perfect for weekend cars or those who want maximum sound enhancement.

Will This Void My Warranty?

Under the Magnuson-Moss Warranty Act, manufacturers cannot void your entire vehicle warranty simply because you installed an aftermarket part. However, if the aftermarket part causes damage, that specific damage may not be covered. Installing a quality cat-back exhaust system from a reputable manufacturer like those we sell rarely causes any warranty issues, as these systems don't modify the engine or emissions components.

Best Practice: Keep your stock exhaust system. If you need warranty service, you can reinstall it temporarily. Many enthusiasts do this as a precaution, though it's rarely necessary with quality exhaust systems.

Emissions & Legal Considerations

50-State Legal Exhausts

Exhausts labeled as "50-state legal" meet emissions requirements in all U.S. states, including California's strict CARB (California Air Resources Board) standards. These systems maintain all catalytic converters and pass emissions testing. They're the safest choice for street-driven vehicles.

CARB Compliance

California and several other states require CARB approval for aftermarket exhaust systems. CARB-compliant exhausts have been tested and certified to meet emissions standards. Always check your local regulations and choose a compliant system for street use.

Off-Road Use Only

Some exhaust systems are labeled "Off-Road Use Only" or "Not for Highway Use." These systems may not meet emissions standards and are only legal for competition vehicles or off-road use. Installing these on street-driven vehicles may be illegal in your area and can result in fines or failed emissions tests.

Common Installation Mistakes to Avoid

1. Not using penetrating oil: Exhaust bolts can be extremely stubborn due to heat and corrosion. Spray them with penetrating oil 24 hours before installation and again right before starting work.
2. Tightening bolts in wrong order: Always work from front to back, hand-tightening everything first before final torqueing. This ensures proper alignment and prevents binding.
3. Over-tightening clamps: Exhaust clamps should be snug but not over-torqued. Over-tightening can crush pipes or crack flanges.
4. Ignoring clearance: Make sure the exhaust has adequate clearance from the chassis, fuel lines, brake lines, and suspension components throughout the full range of motion.
5. Skipping the break-in period: New exhausts may smoke slightly during the first few drives as manufacturing oils burn off. This is normal. Also, retorque all connections after 50-100 miles.
6. Not checking for leaks: After installation, start the engine and carefully check all connections for exhaust leaks. A small leak now can become a big problem later.
7. Improper hanger installation: Make sure all rubber hangers are properly seated and not twisted. Improper hanger installation causes rattles and premature wear.

Performance Gains Explained

Aftermarket exhaust systems improve performance by reducing backpressure and improving exhaust flow. Your engine is essentially an air pump - it needs to breathe in fresh air and expel exhaust gases efficiently. Factory exhaust systems are designed with restrictive mufflers and small-diameter piping to minimize sound, but this limits performance.

A quality aftermarket exhaust uses larger diameter piping and less restrictive mufflers to allow exhaust gases to exit more freely. This reduces the work your engine has to do to push out exhaust, freeing up power. How much you gain depends on the car and the part - check the maker's own numbers for your vehicle.

Note: Performance gains vary based on your vehicle, engine modifications, and driving conditions. Gains are typically more significant on turbocharged vehicles where reduced backpressure allows the turbo to spool more efficiently.
